Replica XL 3.5 Gallon Gas Tank
This product is sold out

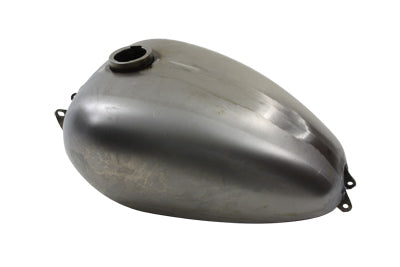

Replica gas tank has a right side petcock location and fuel capacity of 3.5 gallons featuring the Roadster style.
Front mount tab holes to rear mount tab holes measure 21-1/4" center to center. The fuel opening is 4-1/2" from the front edge of the tank and 16" from the rear edge.
**NOTE: For an early retro look like on 1957-1978 Sportsters, pair up with #50-1068 Replica rear Fender Steel, for use with 18" wheels only.
Please test fitment before painting.
Tank weld seams may require filler to meet your individual requirements. Do not grind or sand the seams as this may cause leaks.
We suggest using Kreem gastank combo kit to clean, condition and seal. This will help to stop leaks and prevent corrosion.
Check petcock opening, making sure the petcock can be easily installed. Petcock fitting should be masked or plugged during painting for easy installation of petcock.
*NOTE: UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs.
| OEM No. | 61006-57 |
|---|---|
| UOM | 1 - EA |
| Measurements | Top Length: 19" Bottom Length: 19-1/2" Rear Width: 6-1/2" |
| Manufacturer | Wyatt Gatling |
| Style | Roadster |
| Replacement Items | 35-0650 - Petcock with Threaded End |
| Other Notes | Front Width: 12-3/4" Rear Height: 2-1/4" Front Height: 8-5/8" Front Tunnel Height: 6-1/2" Rear Tunnel Height: 2" Tunnel Length: 19-1/2" |
| FITS | XL 1952-1978 |
