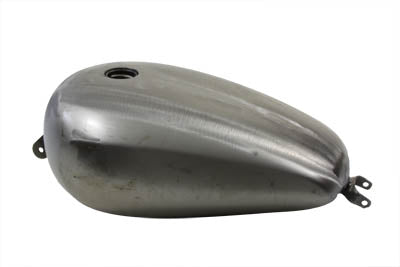

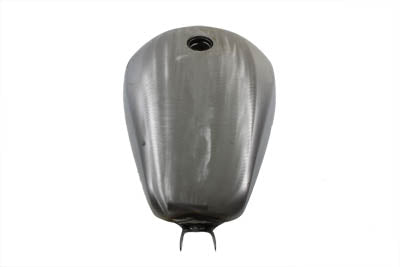

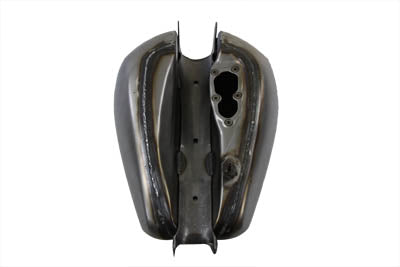

Replica Roadster 4.5 Gallon Gas Tank
This product is sold out
ITEM BACKORDERED
Replica Roadster gas tank features steel construction.
Tank comes with a stock filler neck and left side fuel line fitting.
Fuel capacity is 4.5 gallons for EFI models.
The fuel pump door requires the use of 10-32 UNF X 3/4" long Panhead machine screws, which are not supplied, to install the fuel pump.
Check the tank for flaws and fit before painting.
The tank requires sanding and primer before painting.
Do not grind or sand the seams or joints.
It is suggested to pressure test and use a tank sealer.
We suggest using Kreem gas tank combo kit to clean, condition and seal to help stop leaks and prevent corrosion.
*NOTE: Must order gas caps separately.
*Note: UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs.
| OEM No. | 62213-07 |
|---|---|
| UOM | 1 - EA |
| Measurements | Top Length: 21-1/4" Bottom Length: 17" Rear Height: 1-1/2" |
| Manufacturer | Wyatt Gatling |
| Style | Roadster |
| Replacement Items | 38-0880 - Replica Roadster 3.5 Gallon Gas Tank |
| Tech Note | Suggested to use with #38-0956 Black Skull Style Vented Gas Cap. |
| Other Notes | Front Height: 7-1/2" Front Tunnel Height: 4-1/2" Rear Tunnel Height: 3/4" Tunnel Length: 21-3/4" |
| FITS | XLC 2007-2011 883 XL 2007-2011 1200L XLC 2007-2010 1200 |
