Panhead Cylinder Heads Full Assembly
$1,772.48
SKU: 10-1067
This product is sold out
See more: New VTwin MFG Parts

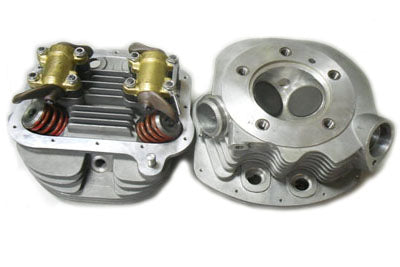

V-Twin Motor Shop Ready Panheads are fully assembled and ready to install.
Heads feature original contour castings with the added detail of the late style intake and Shovelhead exhaust port areas.
Panheads are assembled with cast iron guides, valve stem seals, oilers and nitrated valves, (Panhead exhaust/Shovelhead intake) in combination with a complete spring and collar set.
Matched rocker arm assemblies are installed with heat treated studs & nuts.
Order o-ring type intake manifold separately.
Panhead cylinder heads accept outside overhead oil line.
Accepts 74" and 80" Shovelhead cylinders.
| UOM | 1 - SET |
|---|---|
| Manufacturer | Motorshop |
| Replacement Items | 10-1074 - Panhead Cylinder Heads with Valves 11-0527 - Rocker Arm Assembly Rear Intake Front Exhaust 11-0530 - Intake Valve Oiler 11-0531 - Intake Valve Oiler |
| Tech Note | May require outside oiling. Suggested to use with #35-0085 Replica Alloy Intake Manifold. |
| FITS | FL 1963-1965 |
