Magneto Base and Drive Kit
$198.90
SKU: 32-1345
This product is sold out
See more: V-Twin under $285

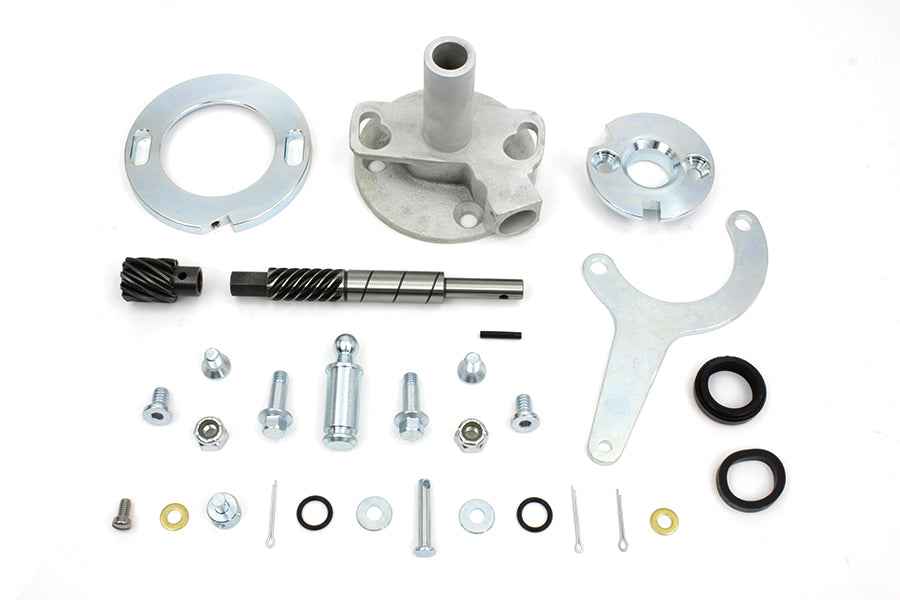

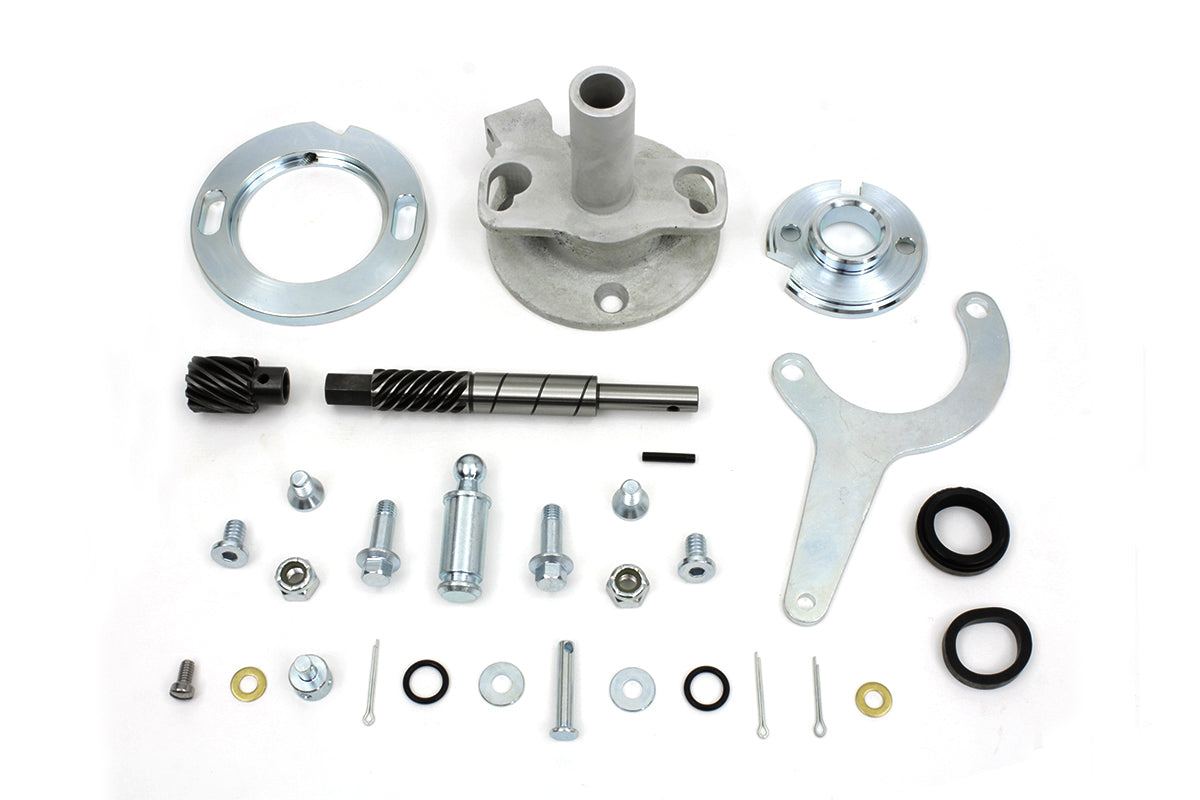

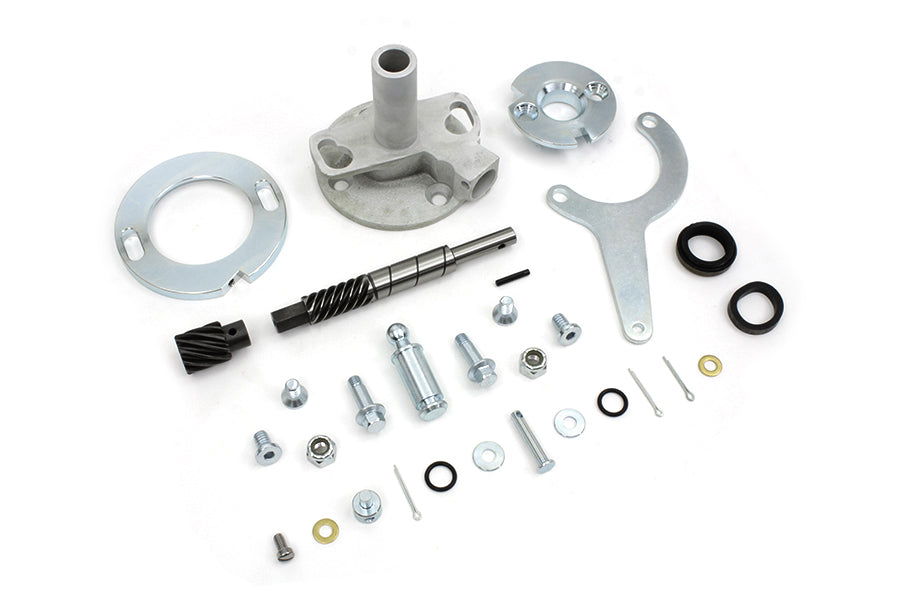

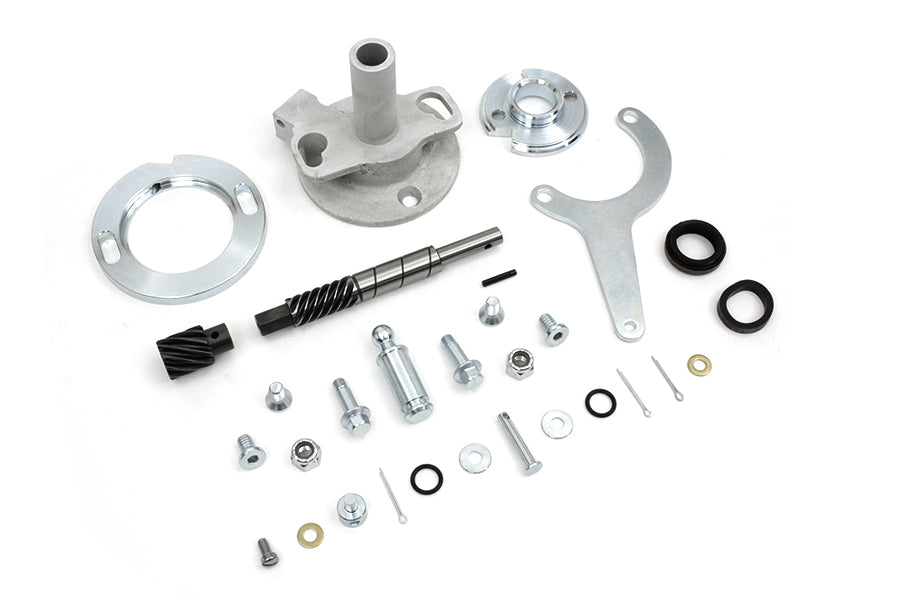

Magneto cast base, shaft, gear, and advance mechanism plate assembly with arm.
This features an adjustable base with lever.
Base plate accepts standard Harley style, Fairbanks Morse or Joe Hunt magnetos.
The shaft is driven by the existing gear.
Base will accept #36-0514 tachometer drive gear, #36-0513 cable, and #32-1298 Magneto Assembly.
Arm allows for manual cable advance.
Shaft has spiral cut for magneto gear installation.
Order magneto head separately.
| UOM | 1 - KIT |
|---|---|
| Manufacturer | Volt Tech |
| Tech Note | Suggested to use with #36-0514 Magneto Tachometer Cable Driven Gear. Suggested to use with #36-0514 Black Magneto Tachometer Cable. |
| FITS | XLH 1957-1970 XLCH 1965-1970 XL 1965-1970 |
