L Series Carburetor Body
This product is sold out

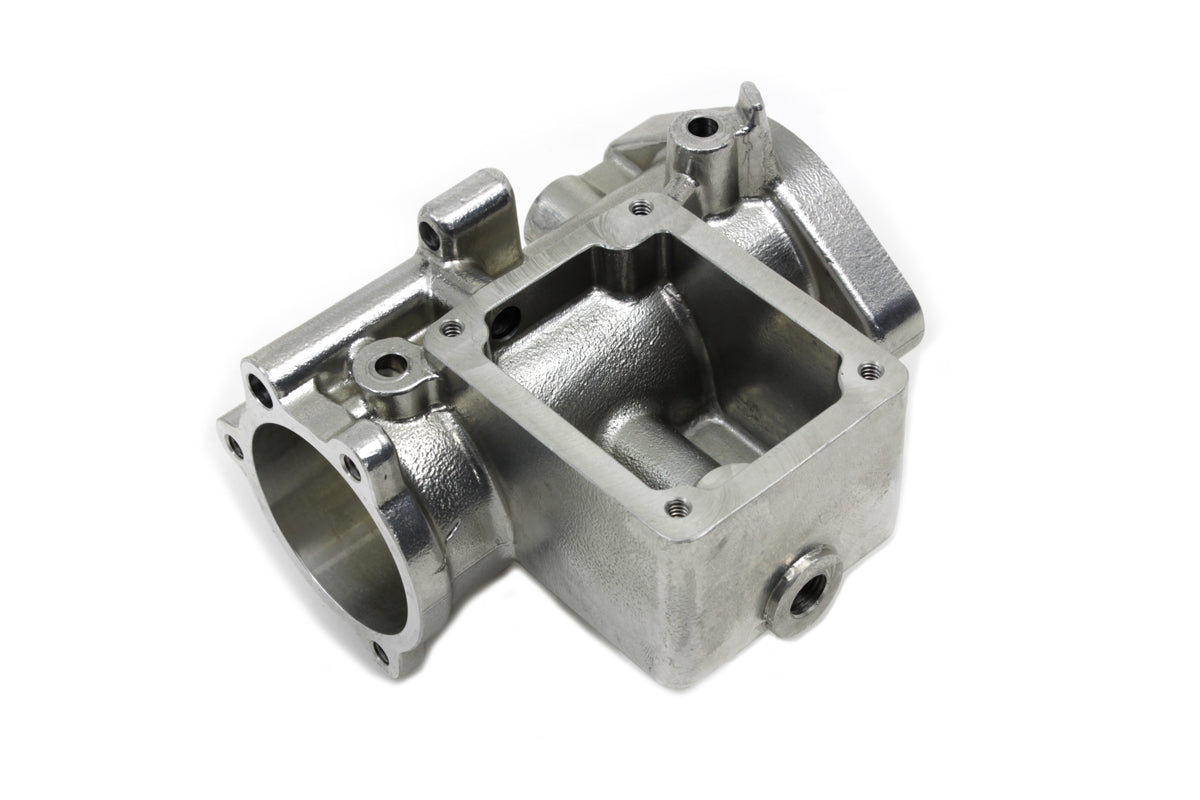

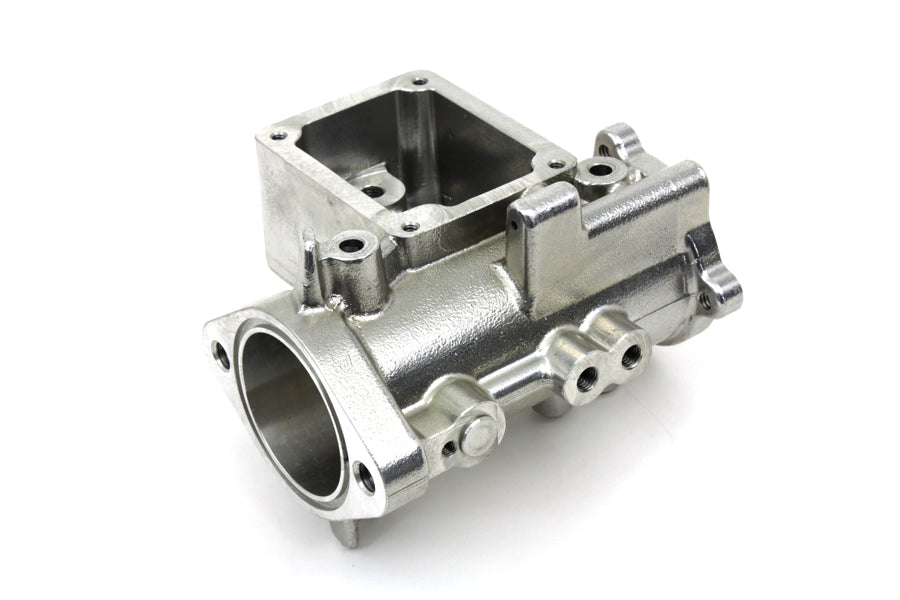

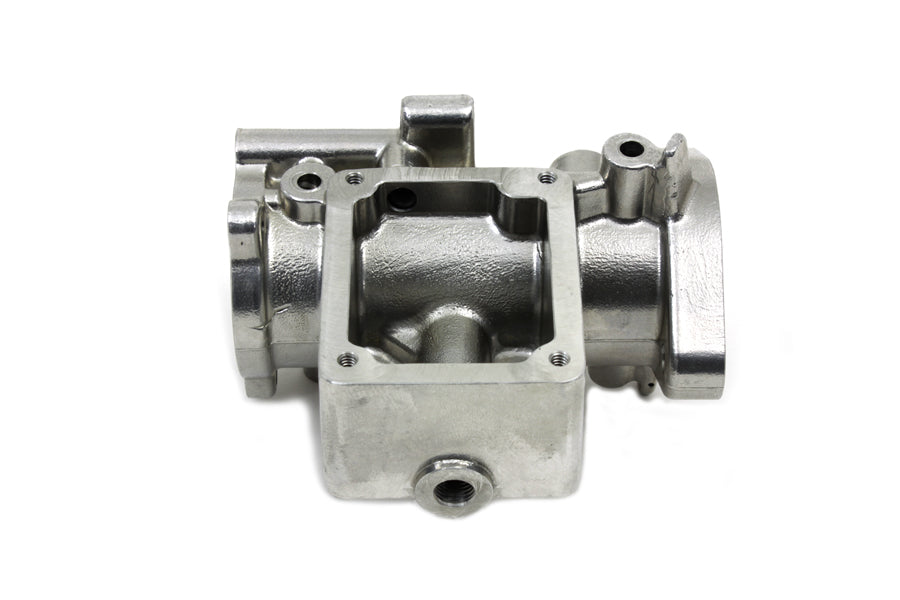

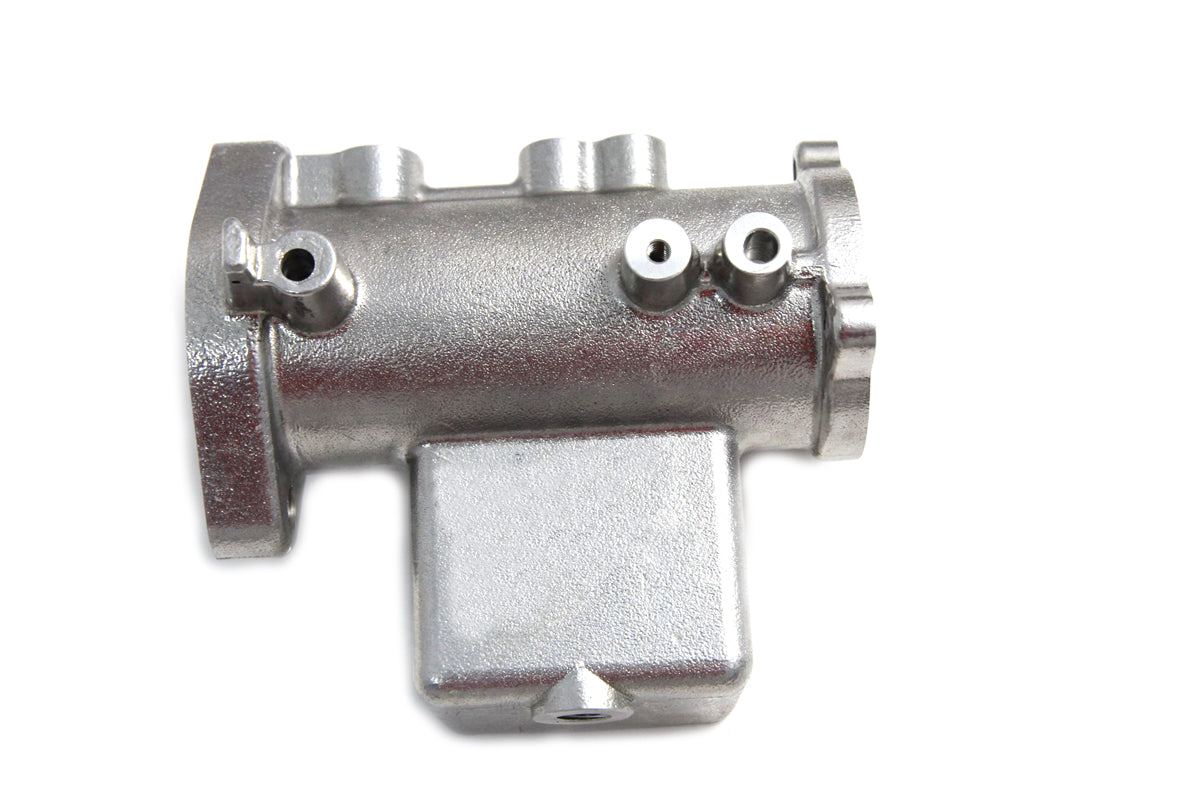

L" Series 1-7/8" bore carburetor body is cast aluminum.
Body casting is an exact replica of the "L" series Linkert MGL gas carburetor design produced by S&S in 1980-81.
Body has 1-7/8" bore and will accept original or replacement parts.
Accepts a 4" throttle shaft.
Features a built-in choke mechanism and side mounted float bowl.
Air cleaner mounting pattern is the same as on stock Tillotson, Bendix, Keihin butterfly type carburetors.
Changeable intermediate air bleed screws into boss adjacent to intermediate jet on the top of the carburetor.
Intermediate jet goes through ventruri from top of carb down into main discharge tube. 66 main jet and 33 intermediate jet are recommended.
For use on an S&S manifold.
Manifold is not included.
| UOM | 1 - EA |
|---|---|
| Manufacturer | V-Twin |
| Tech Note | Suggested to use with #35-0288 Intermediate Fixed Air Jet Assortment. Suggested to use with #35-0303 "L" Series Carburetor Intermediate Jet. Suggested to use with #35-1673 "L" Series Carburetor Choke Door Assembly. |
| FITS | Replacement application for S&S "L" series carburetor |
