Harley Davidson 1937-70' UL, WL, XLCH, K-Model Joe Hunt Magneto Assembly

SKU: 32-0285

This product is sold out

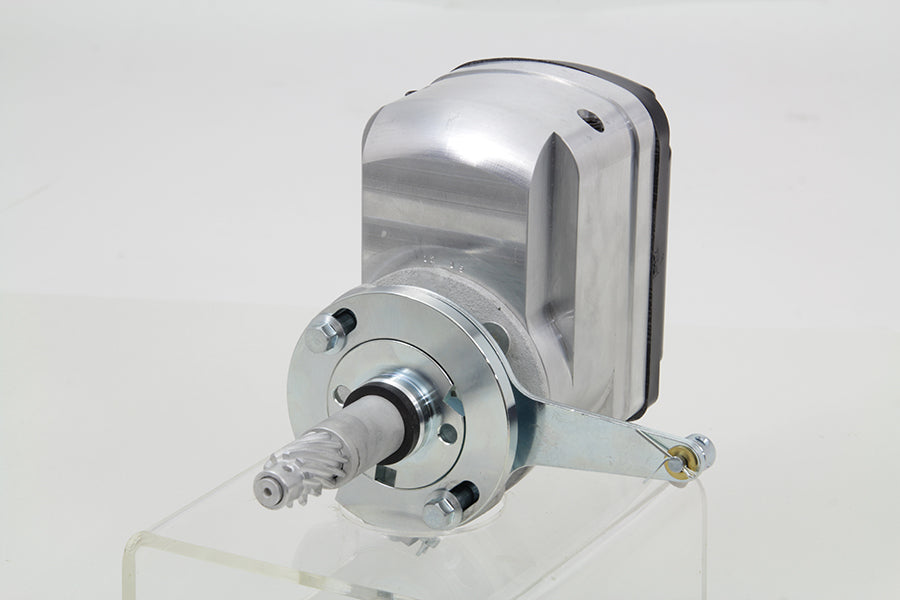

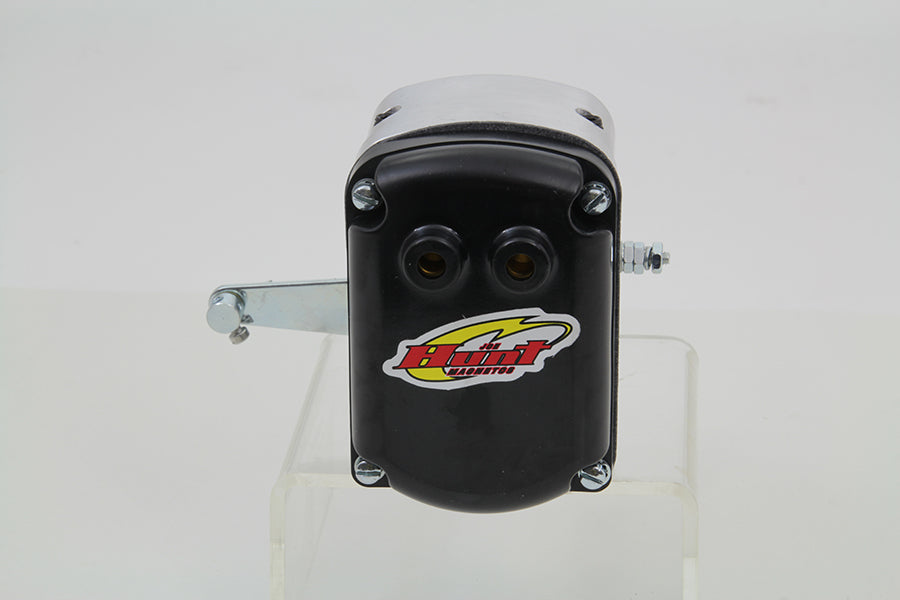

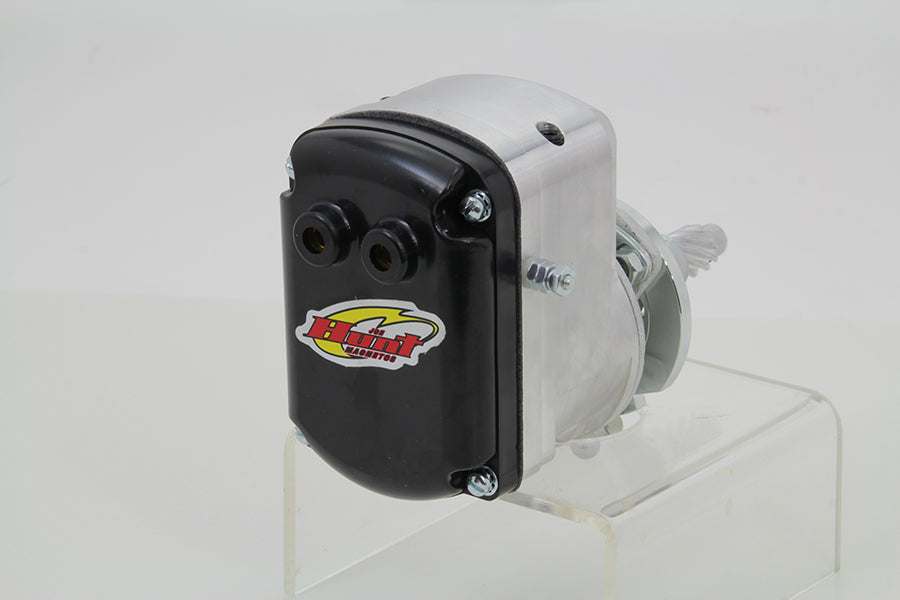

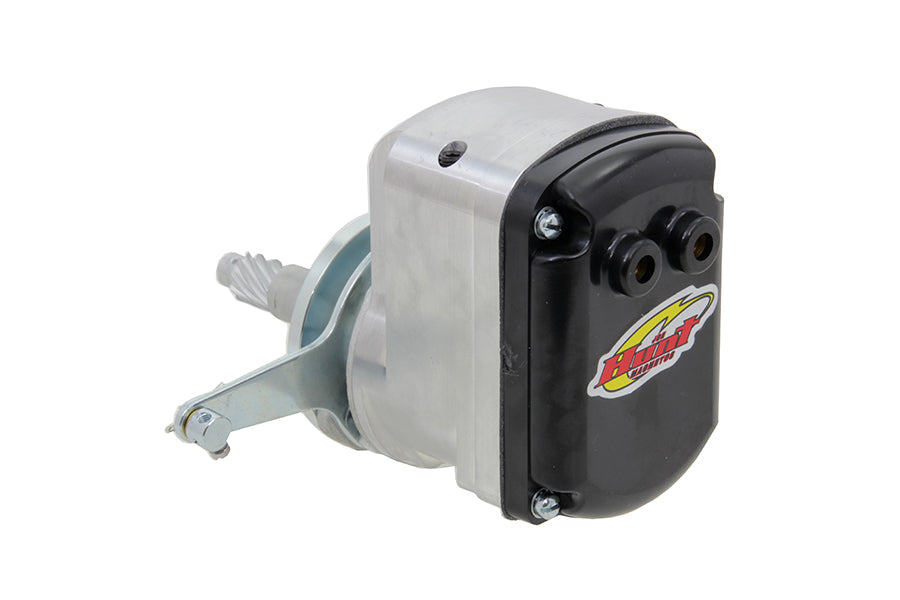

Harley Davidson Side Valve/Sportster Joe Hunt magneto assembly with Burkhardt drive unit and all advance adjustment parts as original.

Kit includes cast base, advance mount driven adjustable outer ring, and arm.

Spiral shaft included to install a tachometer drive, must order drive separately.

Fairbanks-Morse factory aluminum name tag included but not installed.

*NOTE: This advance mechanism can be cable operated. Cable not included.

Manufacturer Motorshop
Origin USA
Replacement Items 32-1298 - Complete Magneto Head Assembly
32-1038 - Magneto Name Tag
32-0584 - Magneto Drive Shaft and Gear Kit
32-0583 - Cast Magneto Base
FITS XLCH 1965-1970
