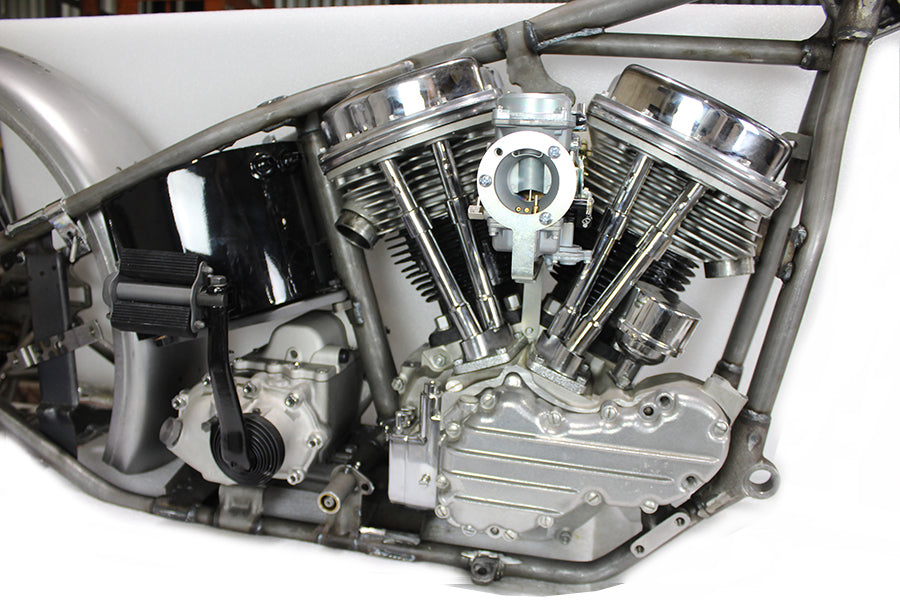

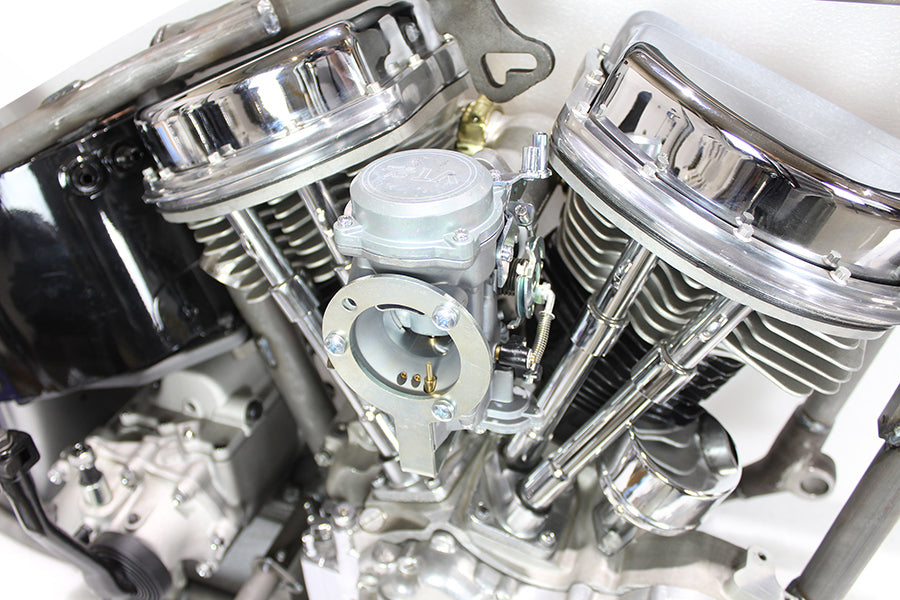

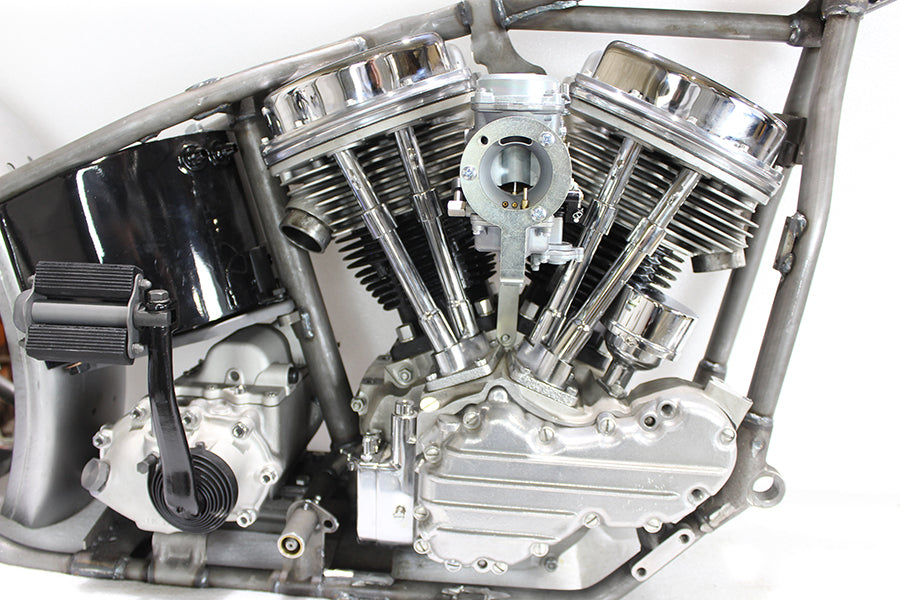

Panhead CV-40mm Carburetor Conversion Kit
This product is sold out
Natural CV carburetor conversion kit is for Big Twins with 4-bolt linkert manifolds.
Kit includes CV 40mm carburetor, 4-bolt linkert adapter to mount to existing linkert manifold and a rubber seal sleeve.
Throttle is operated by single pull cable operation only, not push-pull.
*Enricher is included to replace choke cable assembly.
Order push-pull cable set and twist grip assembly separately.
Cables are stock length.
NOTE: Carburetor must be supported from engine case to air cleaner, bracket included. Includes bracket for supporting carburetor, which mounts to the center motor case stud and face of the carburetor. Air cleaner mounts on top of the bracket with the same screws forinstallation.
*NOTE: Must order the air cleaner separately. Throttle handle not included.
*NOTE: Kit utilizes original stock intake manifold to attach to adapter spigot.
*NOTE: May be fitted to Knucklehead Large port heads or 1948-1954 Panheads with the use of o-ring inserts.
| UOM | 1 - KIT |
|---|---|
| Manufacturer | V-Twin |
| Replacement Items | 35-9150 - CV Carburetor Adapter Flange 35-0987 - 40mm CV Carburetor Assembly Natural 14-0180 - 40mm V-Twin CV Intake Manifold Seal 31-9900 - CV Carburetor Support Bracket Kit Zinc Plated |
| Tech Note | Suggested to use with #7344-6 Intake Manifold Steel Conversion Nipple Kit, on large Knucklehead port heads or 1948-1954 Panheads. |
| FITS | FL 1941-1964 |
