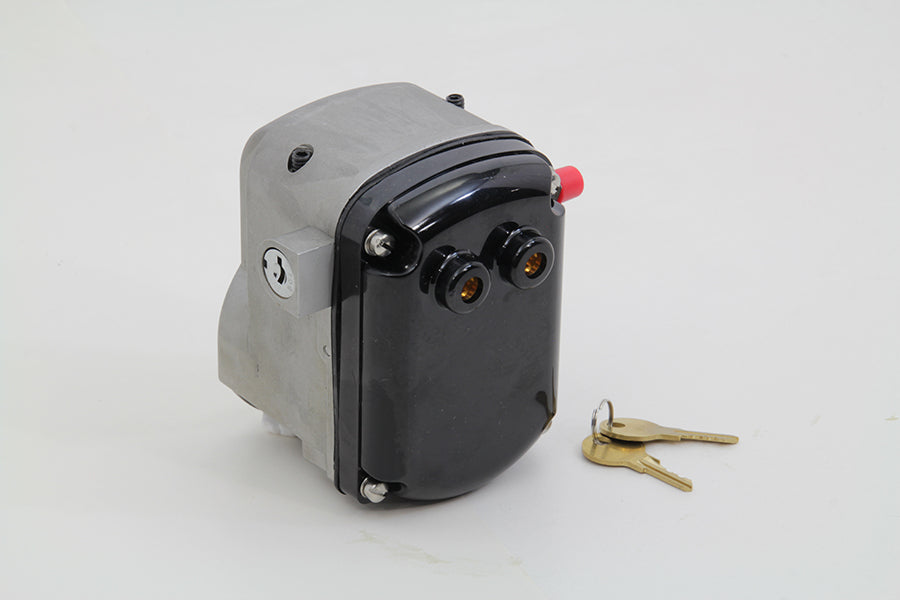

Harley Davidson 1937-73' UL, WL, XLCH, Servi-Car Burkhardt Magneto Head with Key Lock
$544.23
SKU: 32-1309
This product is sold out
See more: New VTwin MFG Parts
Magneto assembly with right hand rotation features internal female hex drive on rotors to fit all Joe Hunt, Morris and Fairbanks Morse drive units.
This complete head is with the key lock.
This replacement unit is ready to spark and start!
OE look and construction!
Magneto grounding stud for kill switch is located on the left side when facing the two spark wire terminals. The die cast magneto body comes with magnetic laminates cast in place as original.
Order drive assembly separately.
**Note: Features an off key provision port and includes keys with lock installed.
| UOM | 1 - KIT |
|---|---|
| Manufacturer | Motorshop |
| Replacement Items | 32-1805 - Magneto Housing 32-2110 - Burkhardt Magneto Rotor Assembly 32-1800 - Right Hand Magneto Bearing Support 32-0976 - Magneto Hardware Kit 32-1081 - Magneto Kill Switch Kit 32-0716 - Magneto Coil 32-0645 - Magneto Black |
| FITS | XL 1957-1970 |
