Bobbed 3.2 Gallon Gas Tank Kit
This product is sold out
Gas tank has a left side petcock opening, and a fuel capacity of 3.2 gallons.

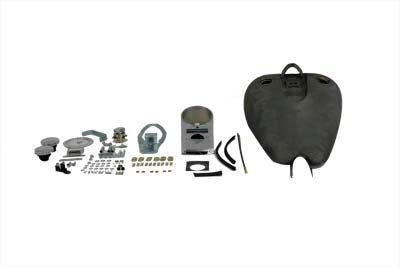

Tank kit features a chrome cast dash kit which includes dash with lens, 6 post switch, choke cable and knob, mounting hardware and trim strips, chrome late style bung caps. and all necessary mounting hardware for installation.
Check the tank for flaws and fit before painting.
Do not grind or sand the seams or joints.
Clean the inside of the tank.
It is suggested to pressure test and use a tank sealer.
We suggest using Kreem gas tank combo kit, clear, condition and seal to help stop leaks and prevent corrosion
Check petcock opening, making sure the petcock can be easily installed. Petcock should be masked or plugged during painting for easy installation of petcock.
*Note: UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs.
| UOM | 1 - KIT |
|---|---|
| Measurements | Top Length: 18-1/2" Bottom Length: 16-1/2" Rear Width: 7" |
| Manufacturer | V-Twin |
| Style | Bobbed |
| Replacement Items | 38-0218 - Gas Tank Coil Mount Relocation Kit 38-0321 - Ratcheting Style Gas Cap Set Vented and Non-Vented Chrome 39-0192 - Speedometer Adapter Ring with Mount Bracket |
| Other Notes | Front Width: 13-1/2" Rear Height: 2" Front Height: 8-1/2" Front Tunnel Height: 8" Rear Tunnel Height: 2" Tunnel Length: 17" |
| FITS | XL 2004-2006 |
