Harley Davidson WL 28" Springer Fork Assembly-Chrome
$1,214.21
SKU: 49-2413
This product is sold out
See more: New VTwin MFG Parts

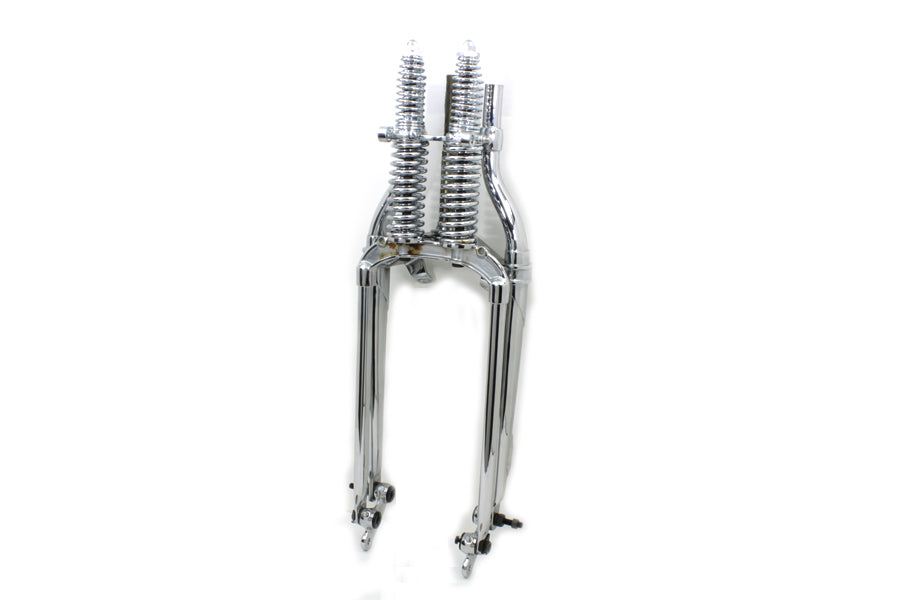

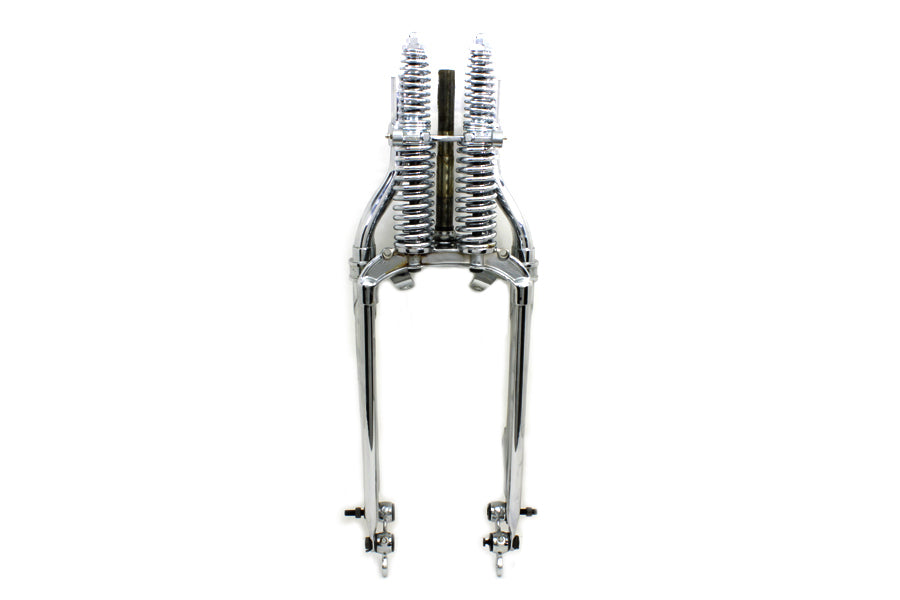

Harley Davidson WL Springer Front End includes inner and outer springs, chrome front and rear legs, inside rockers for a 3/8" axle and internal brake wheel with all studs and bushings, spring rods with bushings.
For use with a 7/8" neck. Top clamp, neck races, and cone nut are not included. Some assembly may be required. 1" tubes on rear legs are tapped 3/4"-16 to accept threaded riser bushing set, with this installed the builder can use a triple tree without ears and choice of post riser set. The 45 rockers are mounted in board of the fork legs and accept a 3/8" diameter axle. The distance between the rockers measure 6.5". These forks are replicas of the stock units with electric welded and brazed construction and will accept all original style components and accessories for the detailed replica look.
*NOTE: We measure from the top of the rear leg (tube), to the front axle center line.
FITS |
WL 1936-1952 |
---|
