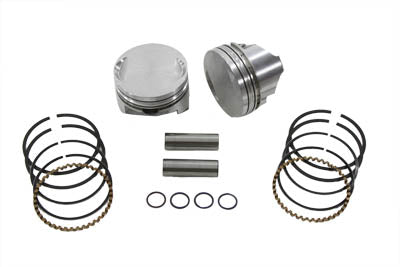

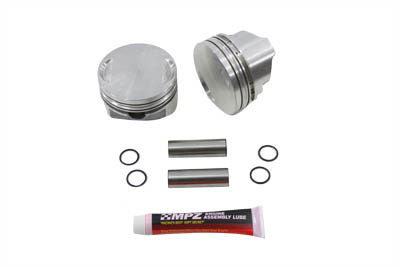

1200cc Piston Set .040 Oversize

Keith Black flat top piston set is .040 oversize with a 8.9:1 compression ratio for 1988-up XL 1200cc Evolution models.
The Keith Black 390 hypereutectic alloy is cast in a permanent steel mold which makes it possible to build a light weight piston that makes more power and uses less fuel and lasts longer. Pistons are .040 oversize, for a 3.498" bore and has a 9:1 compression ratio. The low heat transfer of the alloy keeps the skirts cool so piston expansion is minimal. The combination of a low heat transfer piston alloy and high compression ring placement increases power and economy. The high ring placement alone reduces detoantion and increases the top ring temperature. **Note:Run engine at moderate speeds for at least 500 miles, avoiding excessive running in lower gears, in order to properly break-in new pistons and rings.
