Stainless Steel 18 Spoke Set
$149.90
SKU: 45-0697
This product is sold out
See more: V-Twin under $285

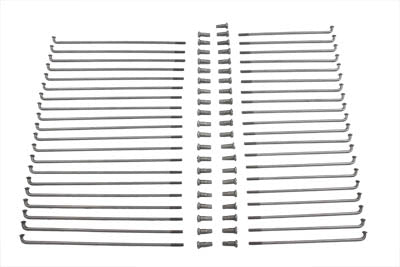

Front OE type spoke set includes 20 long and 20 short spokes with 40 spoke nipples.
9 gauge single stage spokes feature a natural finish.
Spokes are easy to clean and maintain.
For use on a 45" model with an 18" front OE rim with a solo front hub.
Cross four on drum side, and two on small hub diameter end.
*NOTE: Longer 22mm nipple spoke set is available if required for asssembly. We suggest using 26mm long nipples when lacing 45 Front drum wheels.
| UOM | 1 - KIT |
|---|---|
| Measurements | Short Spoke Length: 6" Long Spoke Length: 8-3/8" Diameter: 3.5mm |
| Manufacturer | V-Twin |
| Tech Note | Suggested to use with #52-0961 Replica 40 Spoke 19" x 3.15" Wheel Rim. Suggested to use with #52-0945 Conventional and #52-0946 Replica 40 Spoke 18" X 3.15" Front Wheel Rims. Suggested to use with #45-0927 Spoke 40 Piece Stainless Steel Nipple Set, when lacing 45 front drum wheels. |
| FITS | WL 1938-1952 |
