Black Leather Solo Seat with Skirt
This product is sold out

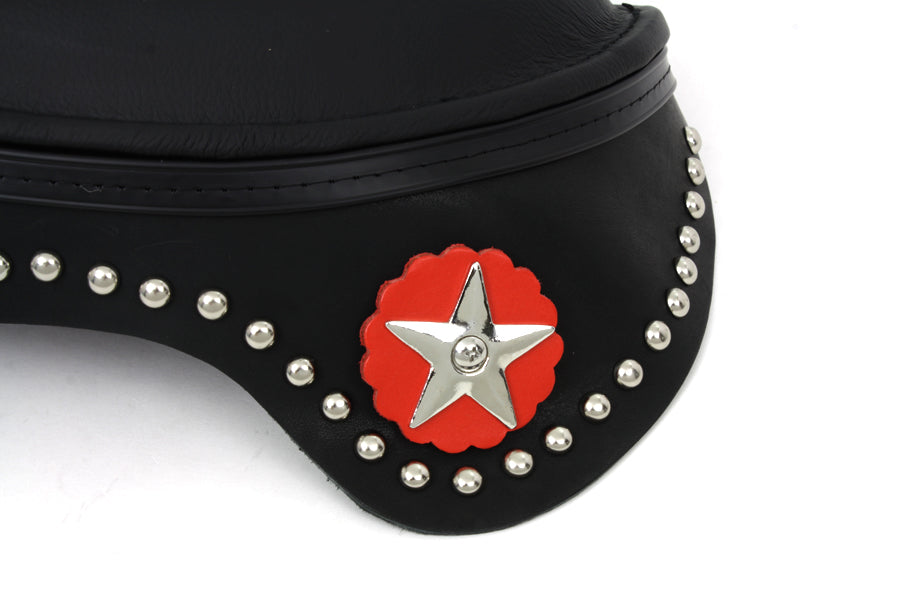

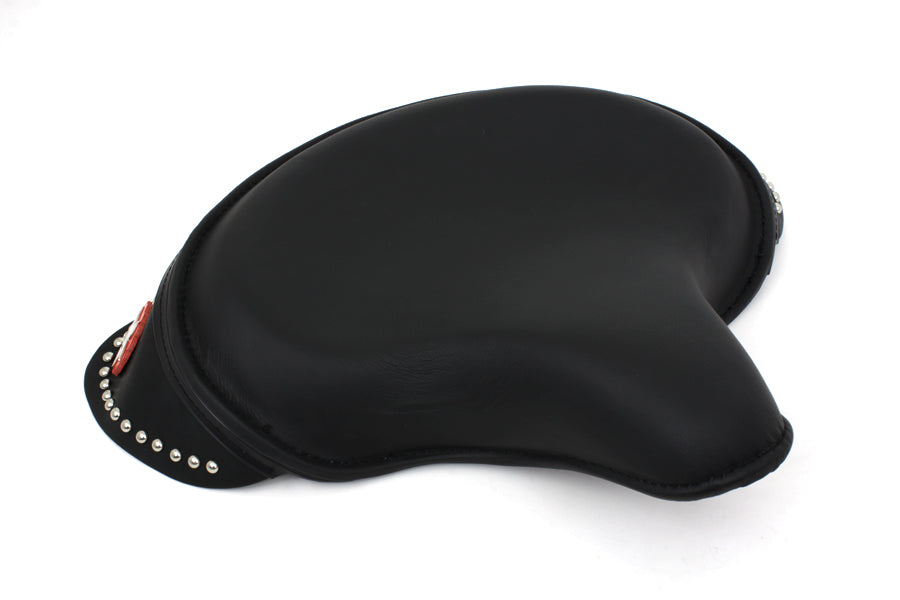

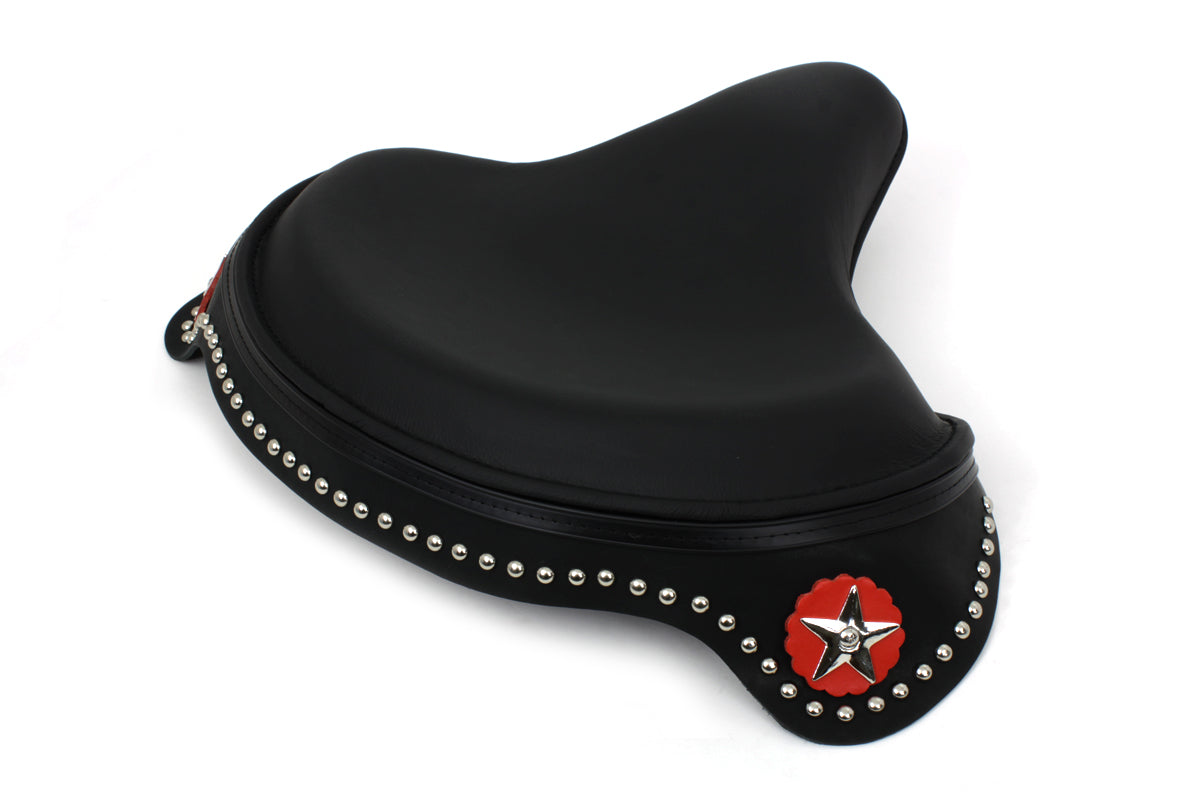

Solo black leather seat has a black skirt with orange rosettes and nickel spots.

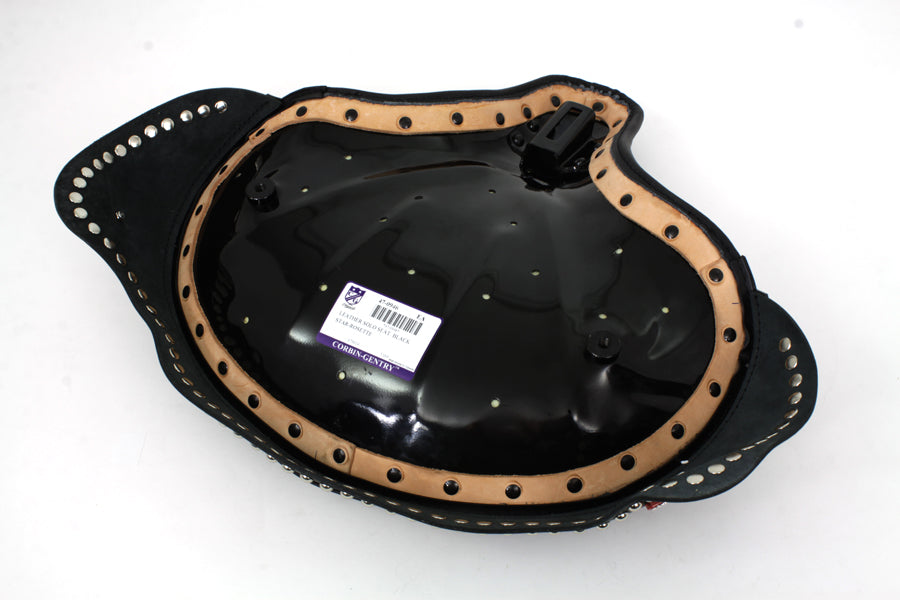

Seat is constructed with a molded foam pad on a steel formed and ribbed baseplate with brackets riveted. It has rolled sewn edges.
Accepts stock type T bar mount systems which must be ordered separately.
Order mount hardware kit separately.
The distance from the top rear of the seat to the bottom of the rear skirt measures 3-3/4". The disntace between the rear bolt holes measures 10-7/8", with a 5/16"-24 NF thread. The top to center is 10-3/8" on mounts. The front bolt holes to the rear measures 7-3/8". The front bracket is 1-7/8" long with a 25/64" width.
*Note: UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs.
Click here to view additional information
| UOM | 1 - EA |
|---|---|
| Measurements | Seat Thickness: 2-7/8" Front Width: 4-1/2" Rear Skirt Length: 2" |
| Manufacturer | Corbin Gentry |
| Material | Leather |
| Style | Police |
| Other Notes | Widest Seat Width: 17-1/4" Skirt Side Length: 4-3/8" Seat Width w/Skirt: 22" |
| FITS | UL 1937-1948 EL 1936-1940 FL 1941-1984 WL 1929-1952 VL 1930-1936 G 1937-1972 |
