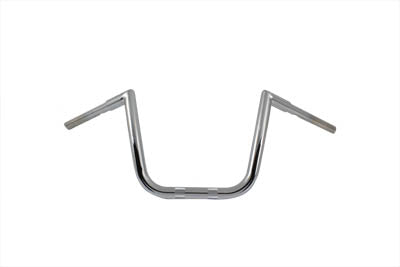

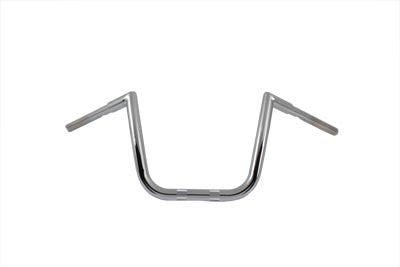

Ape style Z handlebar has a 1-1/4" bar diameter with holes for internal wiring. Accepts throttle-by-wire with right side notches. Handlebar is chrome plated.
These handlebars are for use on FXST CVO models with 1-1/4" outer diameter at the riser area. Bars are indented at the grip area. The wire hole is located at the underside of the bar. *NOTE: For fitment application, purchase 1-1/4" risers separately. Bars do not fit 2015-up FLTR Road Glide models. *Note: UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs.
Click here to view additional information
OEM No. |
55800039 |
UOM |
1 - EA |
Measurements |
Rise To Grip Tip: 8" |
Rise To Center: 10-1/2" |
Pull Back: 6" |
|
Manufacturer |
MCM |
Other Notes |
Width Tip To Tip: 32" |
Knurl: 1-1/4" |
Bar Diameter: 1-1/4" |
|
