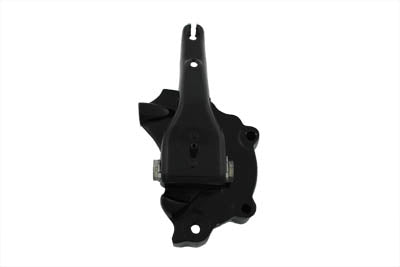

5 W/G Sprocket Cover and Clutch Arm Kit

Clutch arm and cover kit for 45" models.

Mount kit not included. Order throw out bearing separately. Arm is a narrow type. The width at the pivot point on the cast sprocket cover is 53mm. The inside width of the mount tabs measures 46mm.

*NOTE: When using wide clutch arm, use the notch bolt head for clearance, which is located between the arm and kicker bolt. The arm must be milled to accept the notched bolt.

*NOTE: Sprocket cover has boss for kicker arm stop, for kick start models only, may be removed for electric start applications.
