16 Front or Rear Spoke Wheel
$378.43
SKU: 52-0106
This product is sold out
See more: V-Twin under $285

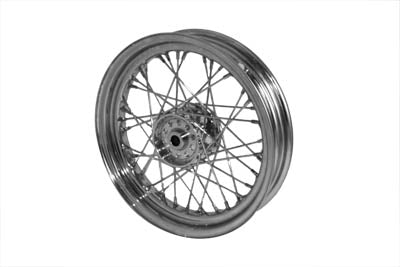

16 X 3.0" wheel assembly includes chrome spokes, chrome hub, rim, and chrome spokes.
Wheel assembly also includes lock screw, seal spacer, tube spacer and one 11/16" bearing. This hub must be supported by a brake drum or a front brake disc flange adapter, sold separately. The front drum uses one bearing, the rear drum sprocket uses 2 bearing. The valve stem hole is on the star side of the hub.
**NOTE: All spokes on wheel need to be inspected and re-torqued after 500 miles of original installation.
| UOM | 1 - EA |
|---|---|
| Location | Front or Rear |
| Manufacturer | V-Twin |
| Replacement Items | 52-0226 - 16" X 3.00" Rear Rim Drop Center |
| Tech Note | When looking at the star side of the wheel, the inner layer of spokes should point clockwise. Rim width is measured by the distance between the rim flanges. |
| FITS | FL 1967-1972 FX 1971-1972 Rear |
